two black and white views of ridged surface under different lighting conditions
Source: NASA/JPL/Johns Hopkins University Applied Physics Laboratory/Brown University
Published: January 9, 2019

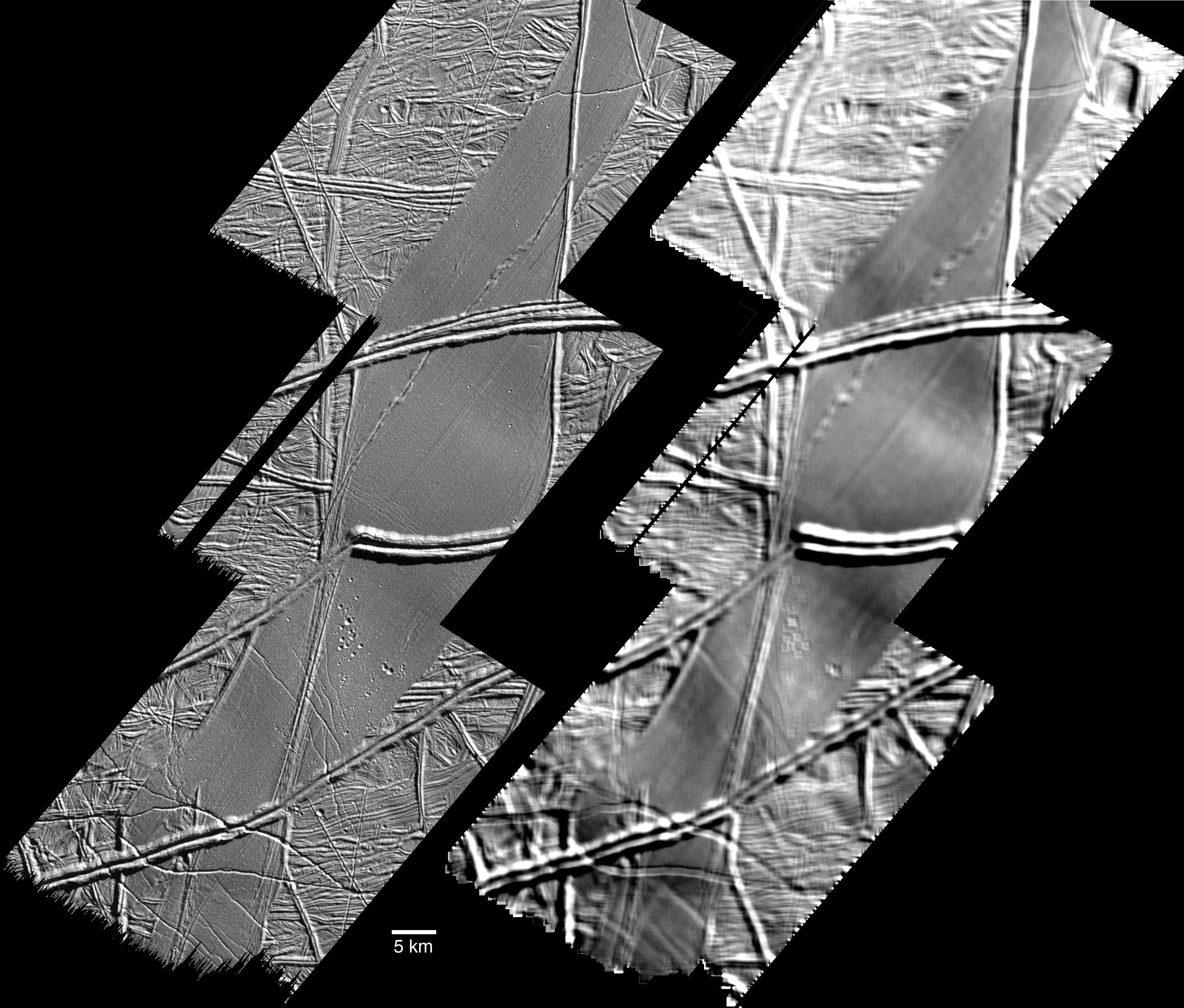

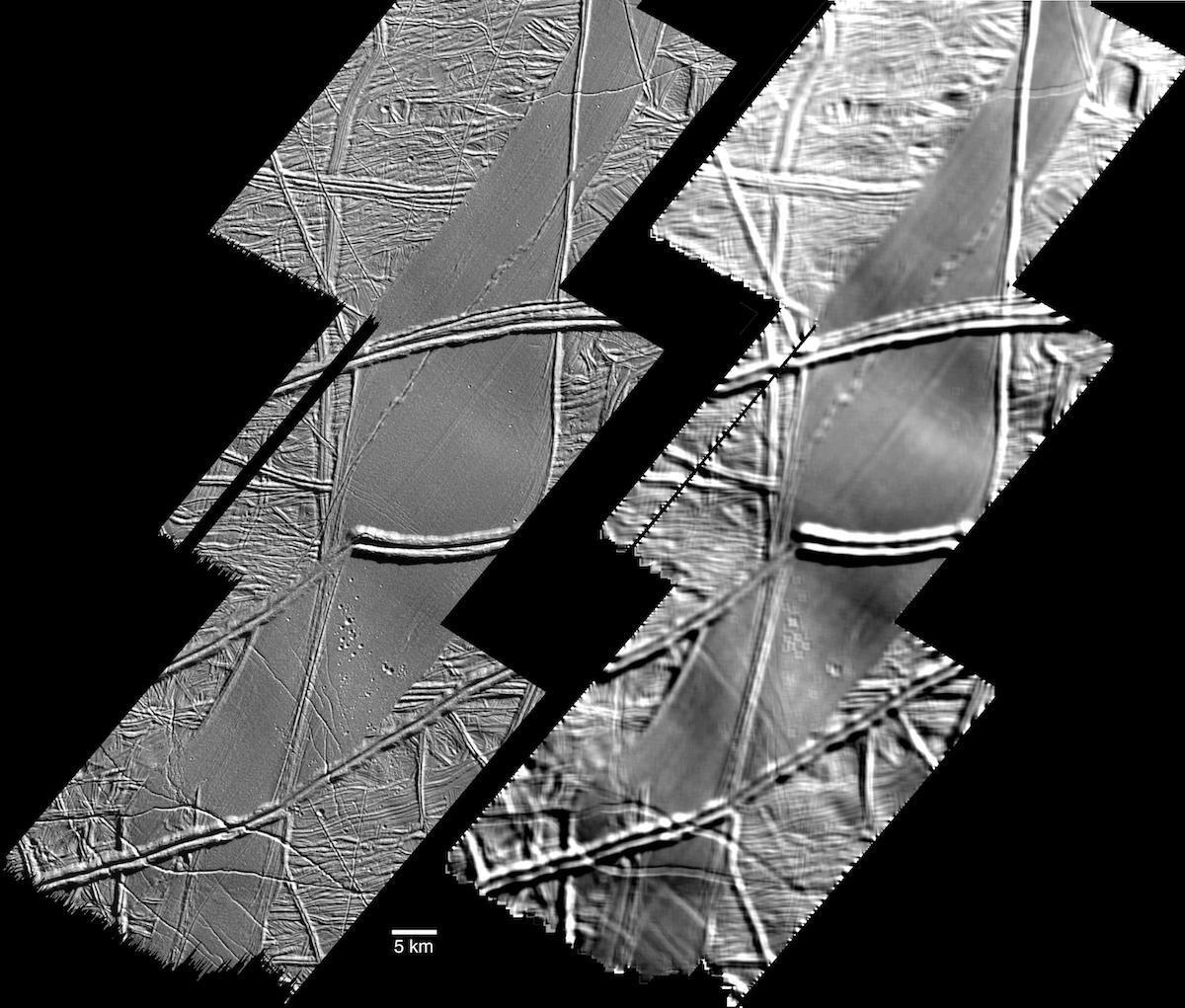

This image, acquired by NASA's Galileo spacecraft on Sept. 26, 1998, shows features on the surface of Jupiter's moon Europa that a scientific report interprets as signs of compressive folding.

The imaged area is in the Astypalaea Linea region of Europa's southern hemisphere, seen with low-angle sunshine coming from the upper right. North is toward the top.

Astypalaea Linea is the smooth, gray area that stretches from north to south across the image mosaic. It is thought to have formed by a combination of pulling apart and sliding of the icy surface. The telltale fold features are within the smoother portions of the surface between the more dominant ridges, which are attributed to upwelling of material through surface ice. In the smooth areas, the surface has gentle swells and dips, which show most clearly in the version on the right, processed to accentuate broader-scale shapes. For example, a dip about 10 miles (about 15 kilometers) wide cuts diagonally across the northern half of the largest smooth area, and a rise runs parallel to that in the southern half of the smooth area.

labeled version of image

Louise M. Prockter, at Johns Hopkins University, and Robert T. Pappalardo, at Brown University, report in the journal Science today that those rises, or anticlines, and dips, or synclines, appear to be the result of compression causing the crust to fold.

Additional evidence comes from smaller features more visible in the version on the left, covering the same area. At the crest of the gentle rise in the largest smooth area are small fractures that could be caused by the stretching stress of bending the surface layer upwards. Similarly, at the bottom of the adjacent dip are small, wrinkle-like ridges that could be caused by stress from bending the surface layer downwards.
